There are various photoelectric sensors equipped in this machine to detect any breakage in the system. This machine is ideal equipment for packaging and serving soups, noodles, and many more savories.
This Bowl machine can also be used to make Doner Boxes and Kebab Boxes with few modifications.

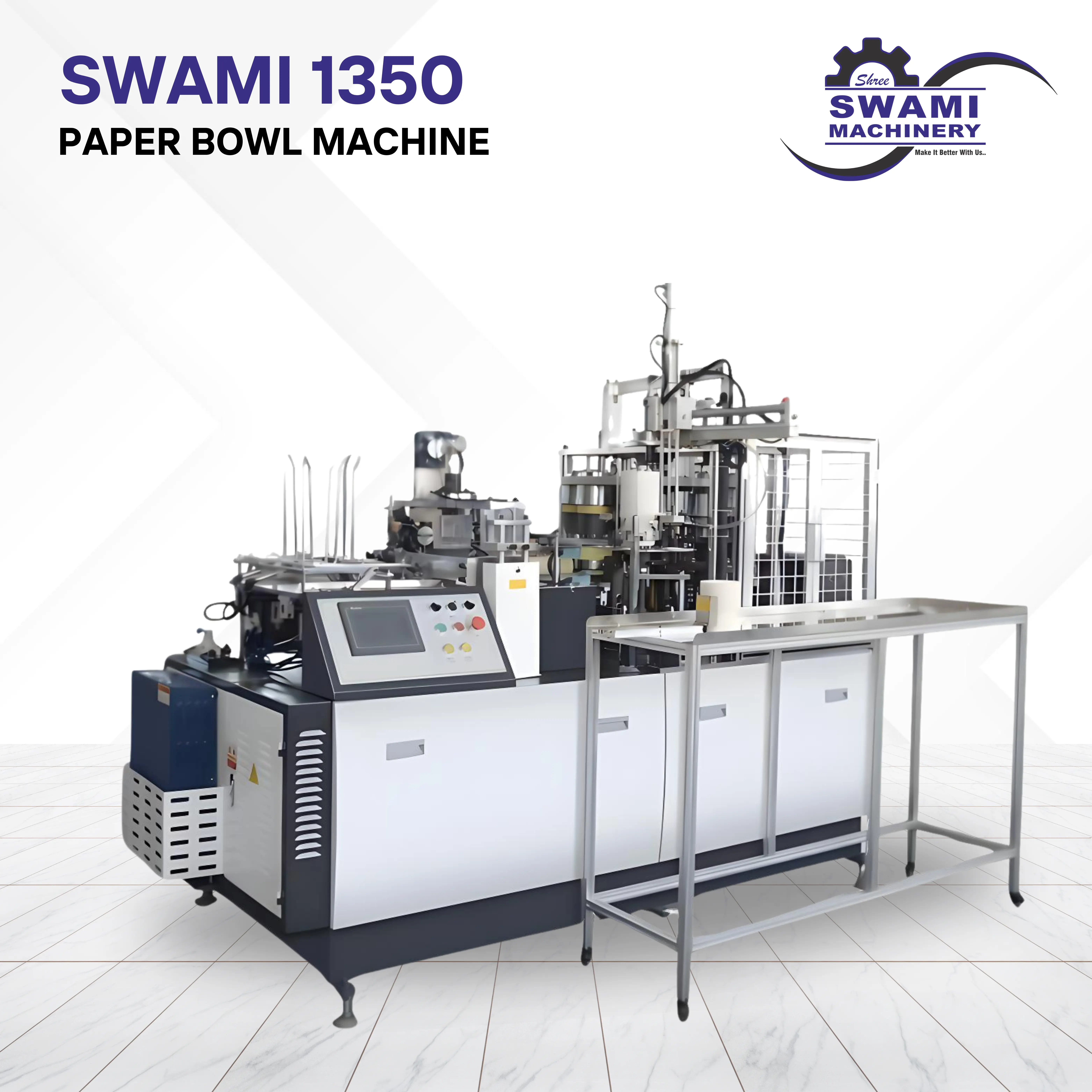

Paper Bowl Making Machine
This paper container machine or paper bowl making machine from ShreeSwamiMachinery is designed with high level of accuracy and international standards. This machine makes paper containers and bowls for food packaging and serving. The machines runs a whole procedure of paper feeding, bowl-fan wall sealing, oil lubrication, bottom punching, heating, rolling, rimming, rounding, and discharge as well.
Paper Bowls Forming Machine
Paper Container or Bowl Making Machine is equipped with the latest single turn plate technology and has a heavy frame. These features make the process simpler and ensure smooth functioning. The Open cam technology induces greater speed and accuracy. The automatic lubrication system reduces friction among various parts of the machinery and keeps the device durable for a long period of time.
- PLC Controlled System
- Open Cam Technology
- Direct Bottom Technology
- Automatic Lubrication
Products Introduction
This Paper food container-making machine can make containers up to 1500 ml. This machine can use both single and double-coated PE paper and has a production capacity of 75 pcs per minute. This model is most suitable for making soup bowls, noodles bowls, etc. It adopts an open cam system and a helical gear transmission system to function smoothly.
Machine Specification
| FEATURE | SPECIFICATION |
|---|---|
| Production Speed | 75 Pcs/Min |
| Paper Container Size Range | Up to 1500 ml |
| Paper Specification | 140-400 gsm |
| General Power | 4.8 KW |
| Power Supply | 380V 50Hz |
| Weight | 3000 kg |
| Machine Dimensions | (2600*1300*1600) mm |
| Air Pressure | 0.3 Mpa |
| Air Output | 0.6 m³/Min |
| Applications | Food packaging containers for soup, noodles, salad, etc |
